For the ham who wants a "Swiss Army Knife" that actually fits in a pocket, this custom quad-radio Cardputer ADV backpack is the ultimate shack-on-the-go.

By integrating four distinct radio engines and a learning IR port onto a single 6-layer PCB, you bridge the gap between vintage analog and the cutting edge of digital mesh.

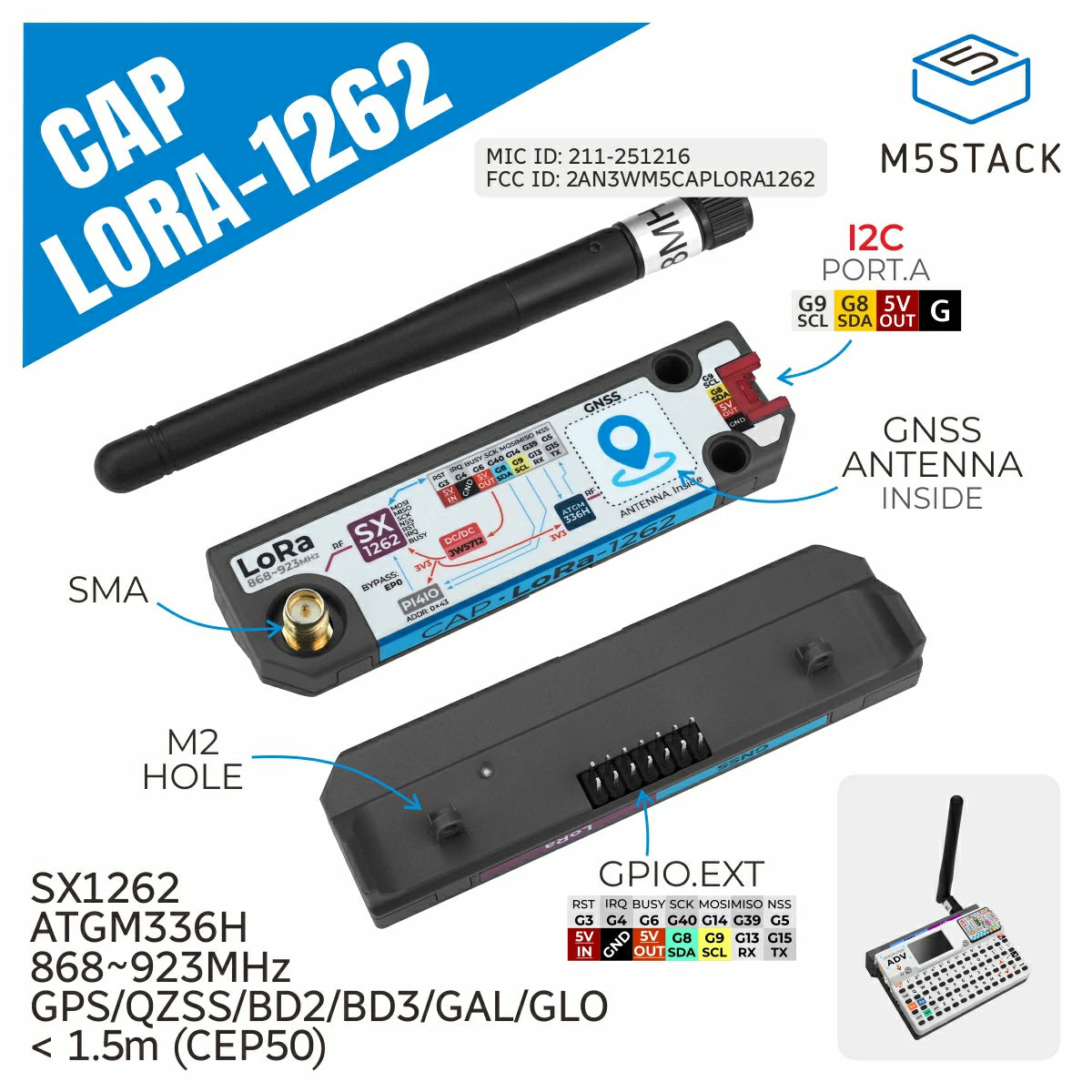

M5Stack Cardputer ADV

Cardputer ADV Backpack

The Field Day in Your Pocket

This build transforms a simple microcontroller into a universal RF terminal. Here is the breakdown of what you can do from the palm of your hand:

4 Radio Engines • 1 Device

1. Dual-Band Analog Voice & APRS

  • Integrated Audio: Uses the Cardputer's built-in **MEMS microphone** and speaker for FM communication.

  • External Comms: Features a **Kenwood Style K Plug** for standard external speaker mics.

  • Dual-Band: Independent SA818 modules for 2m (VHF) and 70cm (UHF).

2. Off-Grid Digital Mesh

  • Protocol Choice: Will run either **Meshtastic** or **Meshcore** for versatile network builds.

  • Decentralized Comms: Integrated LoRa hardware for text and location sharing without infrastructure.

3. Pager Networking (DAPNET)

  • POCSAG Transmit: CC1101 engine for numeric/alphanumeric pagers.

  • DAPNET Gateway: Local node capabilities for the pager network.

4. Signal Sniffing & IR Learning

  • RF Analysis: Capture and analyze 433MHz weather stations and OOK remotes.

  • Master Remote: TSOP38238 learning port for gear automation.

5. Morse Code Mastery

  • Built-in Keyer: Integrated physical **Morse Code keyer button** for field operation.

  • Training Suite: Dedicated **Morse Code training app** to hone your CW skills.

6. Digital Powerhouse

  • Mode Suite: **FT8 Ready**, **Winlink Compatible**, and **Bulletin Board (BBS)** ready.

  • Data Superstar: Advanced support for **AX.25** and mobile **IRC** chatting.

Cardputer ADV

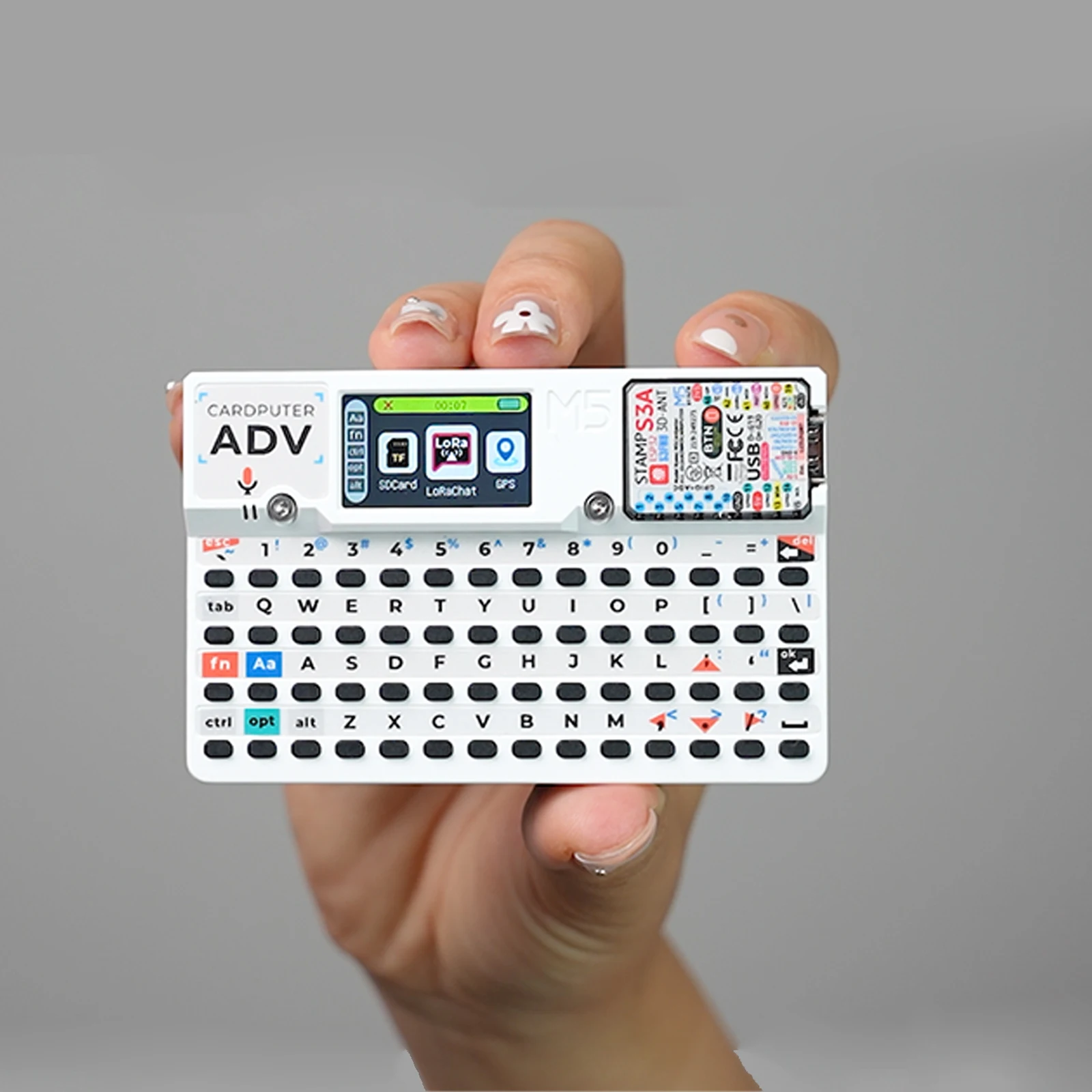

Cardputer ADV View

Why This Design Wins

6-Layer Isolation

The pro-grade stackup ensures that your 1W FM transmission won't desense your sensitive LoRa or Sub-GHz receivers.

Direct Keyboard PTT

No external mic or bulky buttons needed; just tap a designated key to key the transmitter directly from the Cardputer interface.

Portable Power

Optimized for the Cardputer ADV, giving you a high-gain, multi-protocol device that weighs less than a standard handheld radio.

All-in-One Build Summary

Mode Radio Engine Best Use Case
VHF/UHF Voice Dual SA818 Local Repeaters & Simplex
Digital Mesh SX1262 LoRa Off-Grid Texting & Meshtastic
Pager/Sniffing CC1101 DAPNET, Pagers, & ISM Sensors
IR Learning TSOP38238 Shack Automation & Learning Remote
